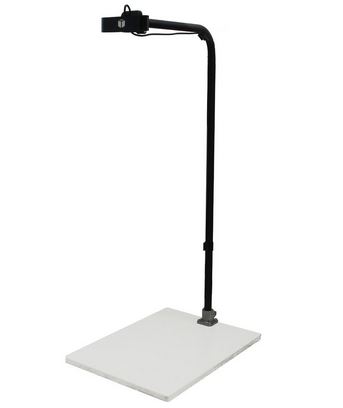

Rapidsize Dimensioner
2 Years Warranty
Remote Setup Assistance
See full Terms and conditions
Product Details
RS 100: Instantly dimension small to medium-sized parcels. Perfect for e-commerce and parcel shipments.
RS 140: Instantly dimension small to medium-sized parcels. Designed for 3Pls and wholesale distributors.
See full Terms and Conditions
| RapidSize 100 | RapidSize 140 | |
| Distance between camera and surface | 3.3 ft (1 m) | 4.6 ft (1.4 m) |
| Maximum parcel size (L x W x H) | 22 x 18 x 18 in (55 x 45 x 45 cm) 24 x 20 x 16 in (62 x 50 x 40 cm) 28 x 23 x 12 in (72 x 58 x 30 cm) | 32 x 26 x 24 in (82 x 66 x 60 cm) 45 x 36 x 12 in (114 x 91 x 30 cm) 51 x 40 x 6 in (130 x 103 x 15 cm) |
| Minimum parcel size (L x W x H) | 0.4 x 0.4 x 0.4 in (1 x 1 x 1 cm) | 1 x 1 x 1 in (2 x 2 x 2 cm) |
| Accuracy | Cuboids: ± 0.2 in (5mm) Non-cuboids: ± 0.5 in (10mm) | Cuboids: ± 0.2 in (5mm) Non-cuboids: ± 0.5 in (10mm) |
System requirements
Operating system: Windows 7 and higher, Ubuntu 14 and higherProcessor: Intel Core 2 Duo or better
Memory: 150 MB available memory
Interface and power: USB 2.0
Temperature: 40 – 95 °F, 5 – 35 °C
Capabilities and limitations
Dimension capturing time: 0.1 - 0.2 second (Depending on system configuration)
Objects: Boxes, mailing tubes, poly bags etc.
Tricolops Dimensioner can accurately dimension objects of any shape except:
Soft materials (fabric, clothes, etc.)
Objects with very fine features
Transparent or near transparent objects
Mirror and mirror-like objects
Metallic objects
Dark and reflective objects
Tricolops Dimensioner cannot be used outdoors or in places with sunlight
Non-reflective flat surface (conveyor belt, flat scale, tabletop)
If the dimensioning surface is flat and non-reflective, no calibration or additional setup is necessary.
Uneven surface (rollers, bumpy scale)
If the dimensioning surface is uneven, warm up the system for 30 minutes and place a thin, flat, and non-reflective board (wood panel, cardboard, etc.) over the uneven surface and calibrate the area. (Follow instructions in the Tricolops Dimensioning App setup wizard).
Reflective flat surface (mirror-like metallic scale)
If the dimensioning surface is flat but reflective, a couple of options are available:
Covering the reflective surface
Spray painting the surface with matte paint
Calibrate the surface
Follow the same calibration procedure as an uneven surface
